WATCHMAN Readout

Overview

Design Reference Page

Jose Duron, Kurtis Nishimura, Vasili Shebalin, Gary Varner, Salvador Ventura
Emeritus: Jonathan Hendriks, Ky Ho, Anthony Schluchin

Latest:

January Collaboration Meeting [Overall Agenda]
Electronics pre-meeting [Agenda v01]

NEW: PMT coupling (for PMT test at Boulby):

11-24-2018 HV related updates

PMT base schematic [pdf]
HV Interface Card for SNO, single-channel schematic [pdf] and some details [txt]
More pictures/schematics [UPenn link]

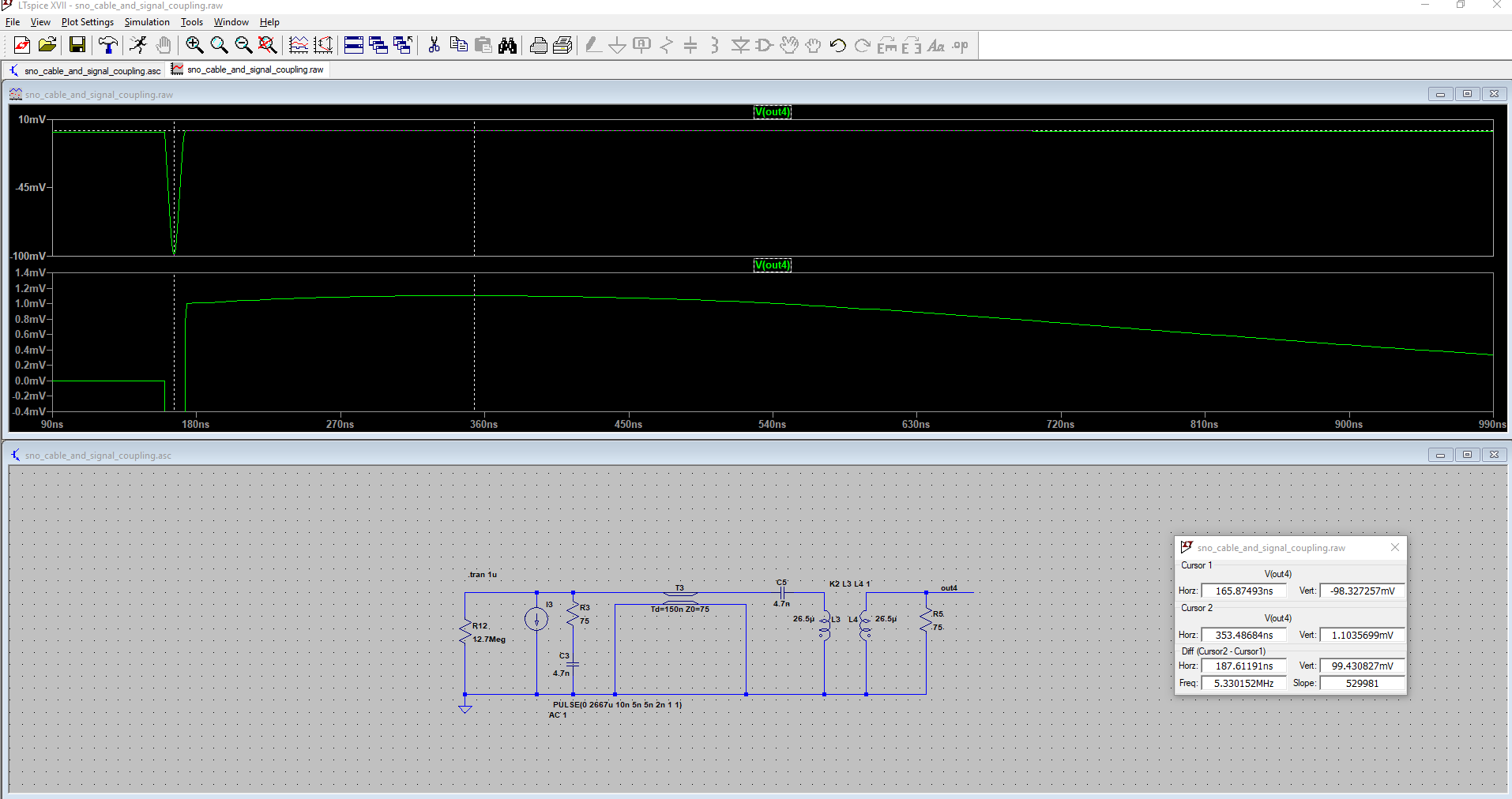

Long cable simulation (Pole zero cancellation) [png]

10-23-2018 [bmp]

Weekly Minutes Of Meeting Agenda

09-25-2018 [pdf]
10-02-2018 [pdf]
10-09-2018 [pdf]

Important Documents

TARGETC Register Map [xlsx]
TARGETC FMC Board design files: [schematics] [pcb]
Rack, Crate, TARGET card numerology [xls] [pdf]
Github [link]
1-OCT-2018 update, including signal flow and team [slides]
Old artix7 firmware for the TARGETX board committed [here]
(8-SEP-2018 == Anthony and Jonathan) Project overview diagram [link]
April 2, 2019 WATCHMAN Firmware Overview [pdf]

WATCHMAN arXiv [link]

Need a detailed block diagram...:

TARGET ASIC readout initial description document [doc] [PDF]
Hamamatsu R7081-100 (low radioactivity HQE) reference (incl. HV) [link]
HV option reference: Digikey [A20]
