MeasurePeds Entity Reference

Inheritance diagram for MeasurePeds:

Entities
Behavioral	architecture

Libraries
IEEE
work

Use Clauses
STD_LOGIC_1164
NUMERIC_STD
STD_LOGIC_MISC
STD_LOGIC_UNSIGNED
klm_scint_pkg	Package <klm_scint_pkg>

Generics
LAST_WINDOW_ADDRESS	std_logic_vector ( 8 downto 0 ) := " 111111111 "
N_BITS_AVG_g	integer
ANALOG_STORE_TIME	std_logic_vector ( 8 downto 0 ) := " 000001000 "

Ports
clk	in STD_logic
ena	in std_logic := ' 0 '
busy	out std_logic := ' 0 '
force_trig	out std_logic := ' 0 '
trig_win	out std_logic_vector ( 8 downto 0 ) := ( others = > ' 0 ' )
prime_fifos	out std_logic := ' 0 '
summing_ena	out std_logic := ' 0 '
cur_win	in std_logic_vector ( 8 downto 0 )
either_bus_busy	in std_logic := ' 0 '
avg_peds_ena	out std_logic := ' 0 '
avg_peds_busy	in std_logic_vector ( 1 downto 0 ) := ( others = > ' 0 ' )
dig_busy	in std_logic

Detailed Description

Overview

The goal is to find the average of each pedestal and write it to off-FPGA memory. Pedestals are measured and added up 2^N times, then then shifted right N times (i.e. divided by 2^N) and written to memory.

Details

MeasurePeds.vhd puts WaveAndPedStaging.vhd's fifos into summing mode, then triggers the readout 2^N times. Next, it tells ProcWaveform.vhd to take over. ProcWaveform.vhd reads and averages (i.e. bit shifts) the FIFOs, then interfaces with PedestalWriter.vhd's A/B-bus arbiter, ultimately writing the averaged pedestal values to external RAM. Finally, this module increments window number and repeats the process until all 512 windows have been measured.

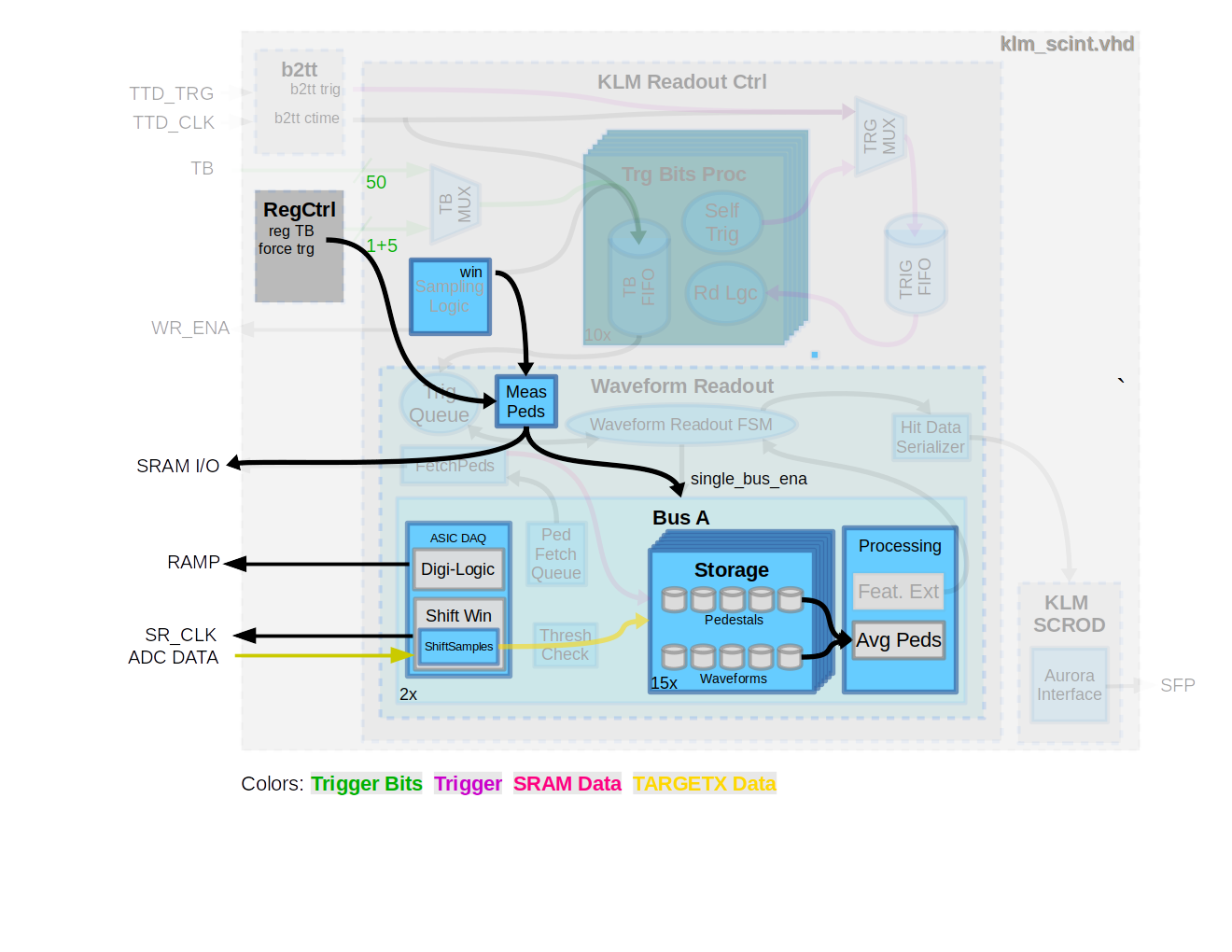

Block Diagram

Definition at line 30 of file MeasurePeds.vhd.

---

The documentation for this class was generated from the following file:

• klm_scint/source/MeasurePeds.vhd
