klm_intfc Entity Reference

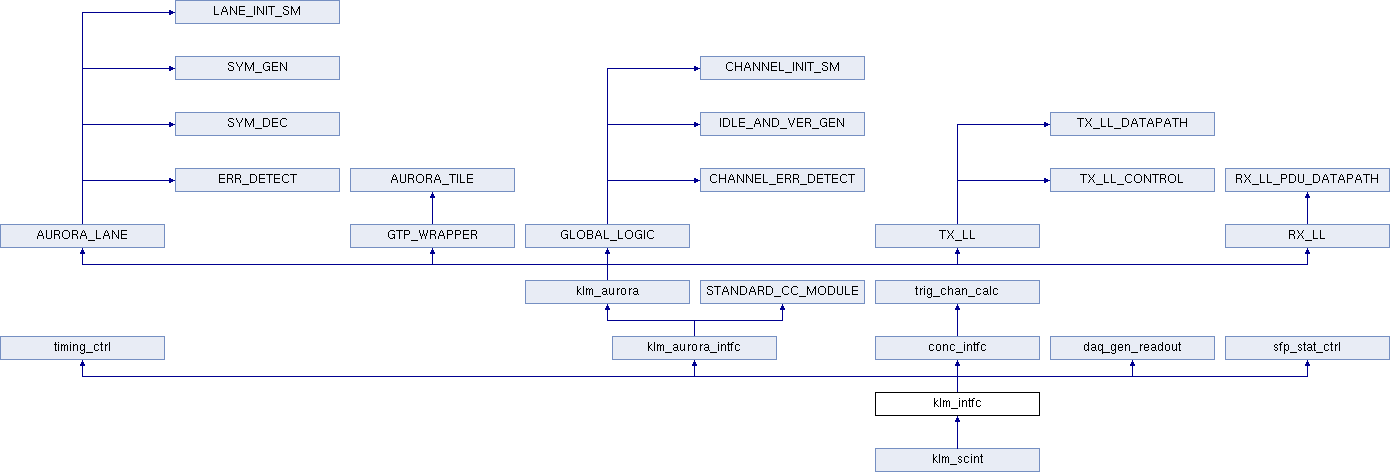

Inheritance diagram for klm_intfc:

Entities
behave	architecture

Libraries
ieee
work
unisim

Use Clauses
std_logic_1164
numeric_std
std_logic_unsigned
std_logic_misc
time_order_pkg
tdc_pkg
conc_intfc_pkg	Package <conc_intfc_pkg>
klm_scrod_pkg	Package <klm_scrod_pkg>
vcomponents

Generics
NUM_GTS	integer := 1
REVISION	string := " A5 "
CLKSRC	string := " FTSW "
AURORA_CC_USE	boolean := FALSE
LINK_TEST	std_logic := ' 0 '
TB_PERIOD	std_logic_vector ( 15 downto 0 ) := X " 2112 "
DAQ_GEN_SIM_SPEEDUP	std_logic := ' 0 '
SIM_REFSELDYPLL	bit_vector ( 2 downto 0 ) := " 000 "
USE_4NS_TDC_CLK	std_logic := ' 0 '

Ports
sysclk	in std_logic
sysclk2x	in std_logic
b2tt_b2clkup	in std_logic
b2tt_ctime	in std_logic_vector ( 26 downto 0 )
b2tt_divclk1	in std_logic_vector ( 1 downto 0 )
b2tt_divclk2	in std_logic_vector ( 1 downto 0 )
b2tt_runreset	in std_logic
b2tt_gtpreset	in std_logic
b2tt_b2linkwe	out std_logic
b2tt_fifordy	in std_logic
b2tt_fifodata	in std_logic_vector ( 95 downto 0 )
b2tt_fifonext	out std_logic
b2tt_frame	in std_logic
b2tt_trgtag	in std_logic_vector ( 31 downto 0 )
target_tb	in tb_vec_type
mgttxfault	in std_logic_vector ( 1 to NUM_GTS )
mgtmod0	in std_logic_vector ( 1 to NUM_GTS )
mgtlos	in std_logic_vector ( 1 to NUM_GTS )
mgttxdis	out std_logic_vector ( 1 to NUM_GTS )
mgtmod2	out std_logic_vector ( 1 to NUM_GTS )
mgtmod1	out std_logic_vector ( 1 to NUM_GTS )
mgtclk0p	in std_logic
mgtclk0n	in std_logic
mgtclk1p	in std_logic
mgtclk1n	in std_logic
mgtrxp	in std_logic
mgtrxn	in std_logic
mgttxp	out std_logic
mgttxn	out std_logic
sfp_stat	out SFP_Status_t
aurora_stat	out Aurora_Status_t
rcl_src_rdy_n	out std_logic
rcl_data	out std_logic_vector ( 15 downto 0 )
qt_fifo_rd_en	out std_logic
qt_fifo_rd_d	in std_logic_vector ( 17 downto 0 )
qt_fifo_empty	in std_logic
qt_fifo_evt_rdy	in std_logic
exttb	out tb_vec_type
trgon	in std_logic
klm_status_upd	in std_logic
stat_tx_in_progress	out std_logic
klm_status_regs	in stat_reg_type

Detailed Description

Definition at line 69 of file klm_intfc.vhd.

---
