b2tt Entity Reference

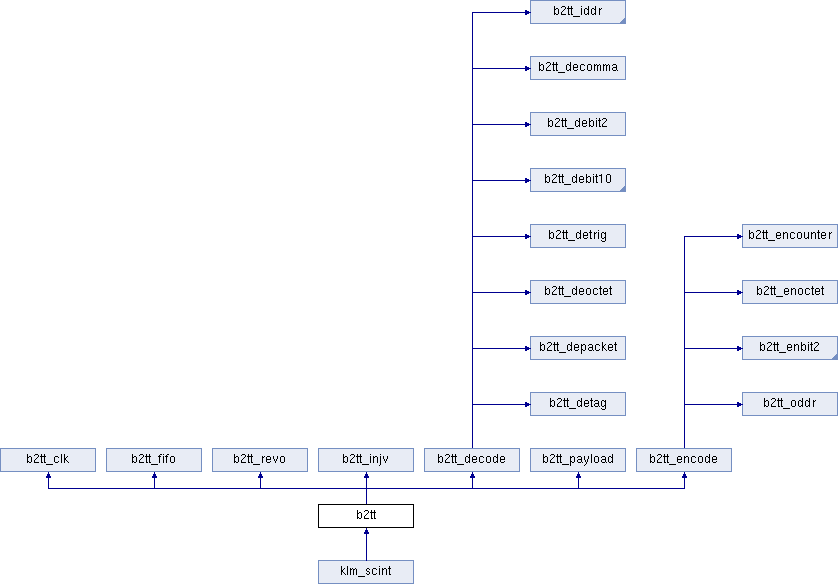

Inheritance diagram for b2tt:

Entities
implementation	architecture

Libraries
ieee
work

Use Clauses
std_logic_1164
std_logic_unsigned
numeric_std
b2tt_symbols	Package <b2tt_symbols>

Generics
SUBSYSTEM	std_logic_vector ( 3 downto 0 ) := TTFEE_UNDEF
FWTYPE	integer := 0
VERSION	integer := 0
B2TT_VER	integer := 52
PROTOCOL	integer := 30
COMPAT	integer := 29
DEFADDR	std_logic_vector ( 19 downto 0 ) := x " 00000 "
FLIPCLK	std_logic := ' 0 '
FLIPTRG	std_logic := ' 0 '
FLIPACK	std_logic := ' 0 '
USEFIFO	std_logic := ' 1 '
CLKDIV1	integer range 1 to 72 := 3
CLKDIV2	integer range 1 to 72 := 4
USEPLL	std_logic := ' 0 '
USEICTRL	std_logic := ' 1 '
NBITTIM	integer range 1 to 32 := 32
NBITTAG	integer range 4 to 32 := 32
B2LRATE	integer := 4
USEEXTCLK	std_logic := ' 0 '
USE254IN	std_logic := ' 0 '
SIM_SPEEDUP	std_logic := ' 0 '

Ports
b2ttver	out std_logic_vector ( 15 downto 0 )
clkp	in std_logic
clkn	in std_logic
trgp	in std_logic
trgn	in std_logic
rsvp	out std_logic
rsvn	out std_logic
ackp	out std_logic
ackn	out std_logic
extclk	in std_logic
extclkinv	in std_logic
extclkdbl	in std_logic
extdblinv	in std_logic
extclklck	in std_logic
id	in std_logic_vector ( 15 downto 0 )
usrreg	out std_logic_vector ( 7 downto 0 )
usrdat	in std_logic_vector ( 15 downto 0 )
b2clkup	out std_logic
b2ttup	out std_logic
sysclk	out std_logic
sysclkinv	out std_logic
rawclk	out std_logic
dblclk	out std_logic
hlfclk	out std_logic
utime	out std_logic_vector ( NBITTIM- 1 downto 0 )
ctime	out std_logic_vector ( 26 downto 0 )
divclk1	out std_logic_vector ( 1 downto 0 )
divclk2	out std_logic_vector ( 1 downto 0 )
exprun	out std_logic_vector ( 31 downto 0 )
running	out std_logic
runreset	out std_logic
feereset	out std_logic
b2lreset	out std_logic
gtpreset	out std_logic
rstmask	out std_logic
trgout	out std_logic
trgtyp	out std_logic_vector ( 3 downto 0 )
trgtag	out std_logic_vector ( 31 downto 0 )
trgmask	out std_logic
frame	out std_logic
frame9	out std_logic
revoloc	out std_logic_vector ( 10 downto 0 )
revosig	out std_logic
abortgap	out std_logic
injveto	out std_logic
injkick	out std_logic
injvpos	out std_logic_vector ( 10 downto 0 )
injvpre	out std_logic_vector ( 10 downto 0 )
injvlen	out std_logic_vector ( 10 downto 0 )
injvfull	out std_logic_vector ( 9 downto 0 )
injvgate	out std_logic_vector ( 9 downto 0 )
busysrc	in std_logic_vector ( 7 downto 0 )
feeerr	in std_logic_vector ( 7 downto 0 )
b2plllk	in std_logic
b2linkup	in std_logic
b2linkwe	in std_logic
b2lclk	in std_logic
semscan	in std_logic
semdet	in std_logic
semmbe	in std_logic
semcrc	in std_logic
fifordy	out std_logic
fifodata	out std_logic_vector ( 95 downto 0 )
fifonext	in std_logic
regdbg	in std_logic_vector ( 7 downto 0 )
octet	out std_logic_vector ( 7 downto 0 )
isk	out std_logic
cntbit2	out std_logic_vector ( 2 downto 0 )
sigbit2	out std_logic_vector ( 1 downto 0 )
dbglink	out std_logic_vector ( 95 downto 0 )
dbgerr	out std_logic_vector ( 95 downto 0 )

Detailed Description

Definition at line 79 of file b2tt.vhd.

---

The documentation for this class was generated from the following file:

• b2tt/b2tt/b2tt.vhd
