Year 2 Readout Documentation page [much from Patrick]

Readout Overview diagram

Recent documentation:

Link to the ARA Wiki  [link]
Repository:   svn+ssh://ara@hepts2.phys.hawaii.edu/data2/svnroot/ara  (for which usualPW/TestBed1 may be helpful)

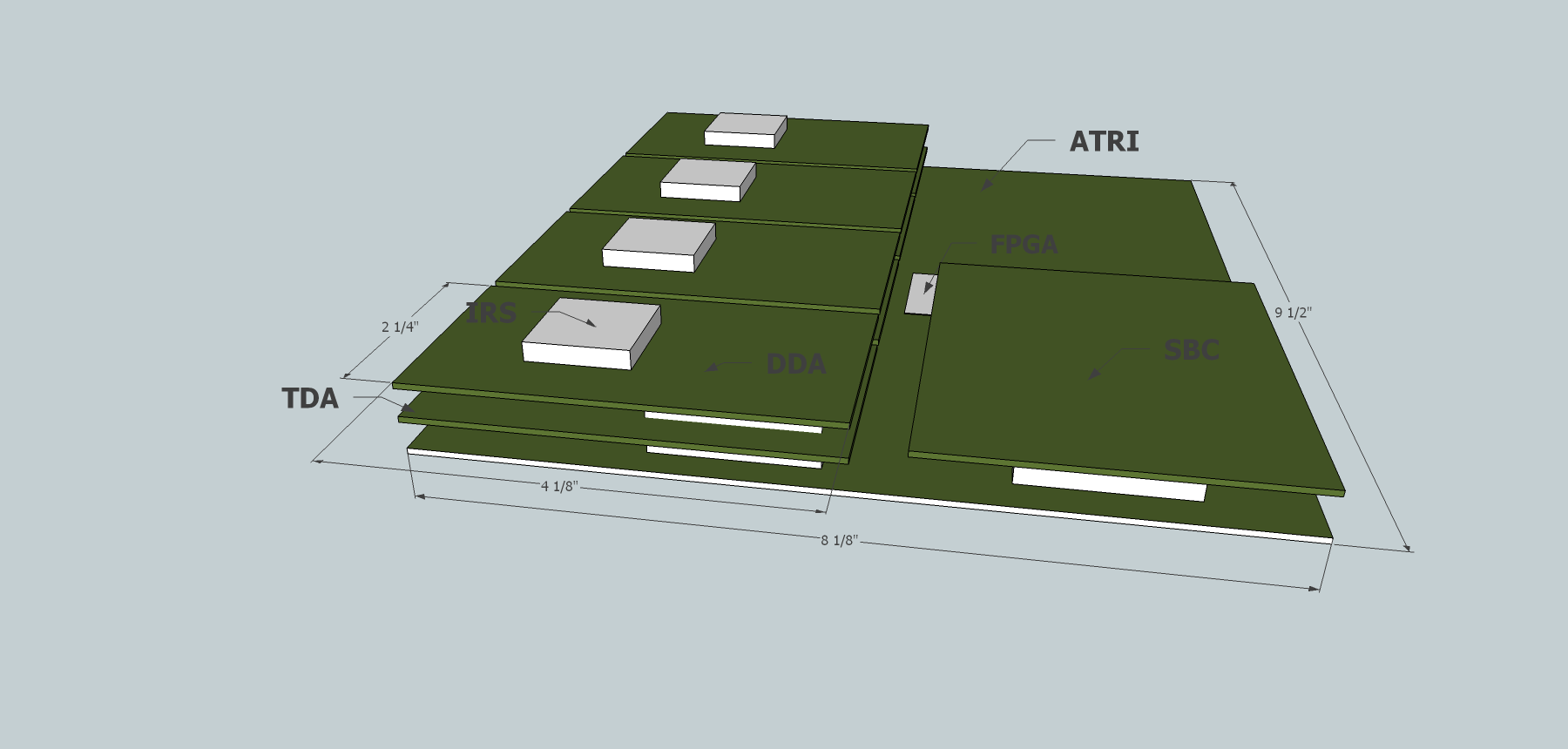

Photo of the ATRI mechanical mock-up board:  [JPG]  (17-MAR-2011)

Follow-up meeting (24-FEB-2011 Asia/23-FEB-2011)

Thursday 15:30 Hawaii
Thursday 17:30 California
Thursday 20:30 Ohio?
Friday       9:30 Taiwan.

Relevant documentation:

to be posted.

Design Review for DDA Rev B/ATRI (18-FEB-2011 Asia/17-FEB-2011)


DDA related documentation:  (for Rev. B design submission)
  1. schematic (Rev. B)   [PDF]

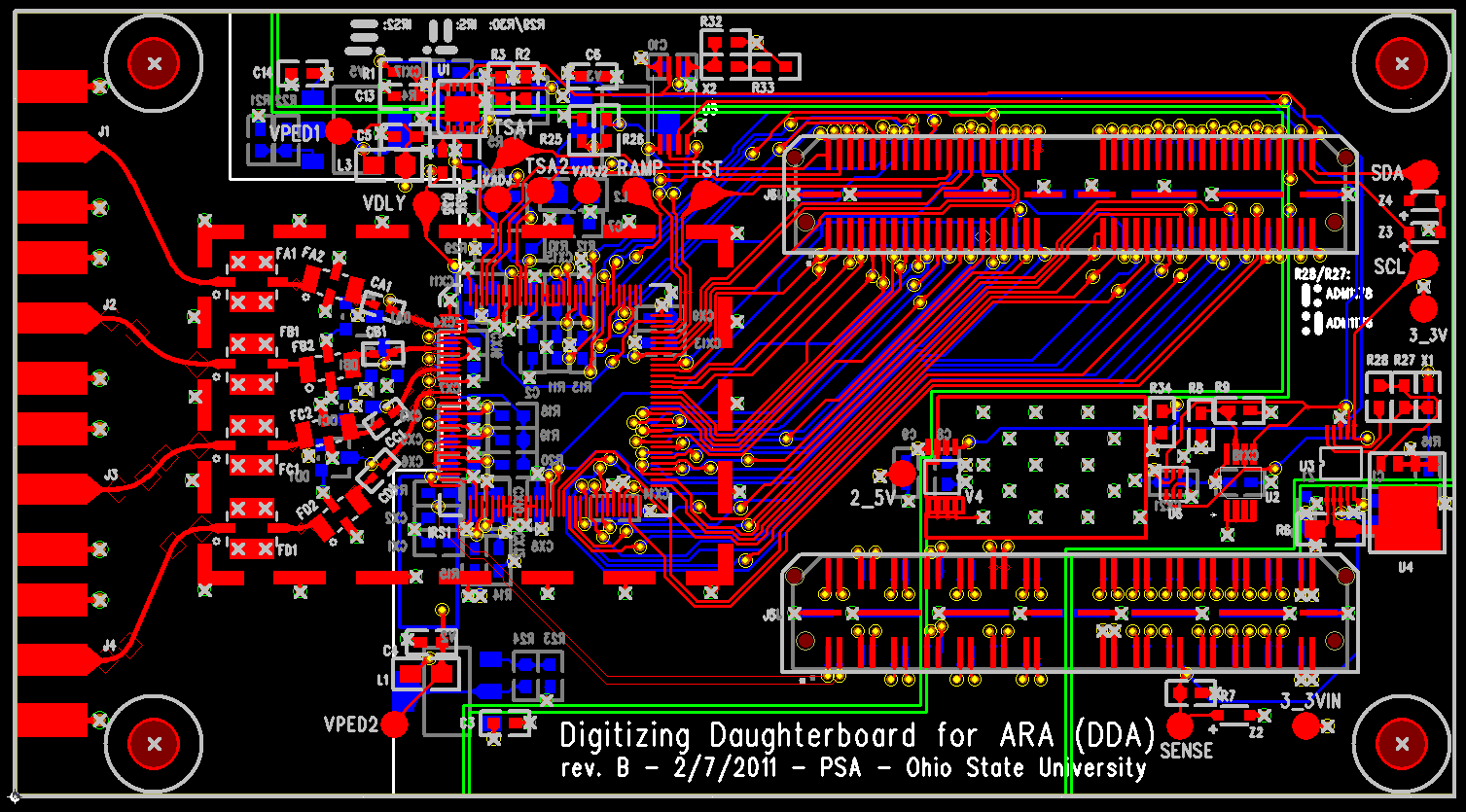

  2. layout (Rev. B)   [PDF]
  3. Users' guide  [PDF]
ATRI (v.4) preliminary design specification review:
  1. Overview Presentation  [PDF]
  2. schematic   [PDF]
  3. some comments on options   [txt]

Dedicated ARA Meeting (15-FEB-2011 Asia/14-FEB-2011)

Monday 12:00 Hawaii
Monday 14:00 California
Monday 17:00 Ohio
Tuesday  7:00 Japan
Tuesday  6:00 Taiwan.

Agenda provided on ARA telephone page  [link]

Year 2 Wiki board/firmware [Patrick] (Icecube)   [link]

DDR_Eval -- Rev B

  1. Schematics (11-FEB-2011)  [PDF]
  2. Board layout (11-FEB-2011)  [png]
  3. List of ECOs from Rev A  [txt]


Photograph [JPG] of the DDA board with IRS2 ASIC mounted (26-JAN-2011).

DDR_EVAL SVN/ssh repository:  svn+ssh://ara@hepts2.phys.hawaii.edu/data2/svnroot/ara

and (TestBed1) is useful to know.

Items raised for Year2 development

  1. ATRI open issues (Patrick)  [PDF]
  2. RF over fiber option (Mike DuVernois)  [txt w/links]
  3. Firmware development/repository options (Patrick)  [txt]

Project Documentation:

  1. Comments from Patrick on the above board configuration   [txt]
  2. DDA_EVAL related documentation:   [txt overview]
    1. DDA evaluation kit interface schematic   [PDF]

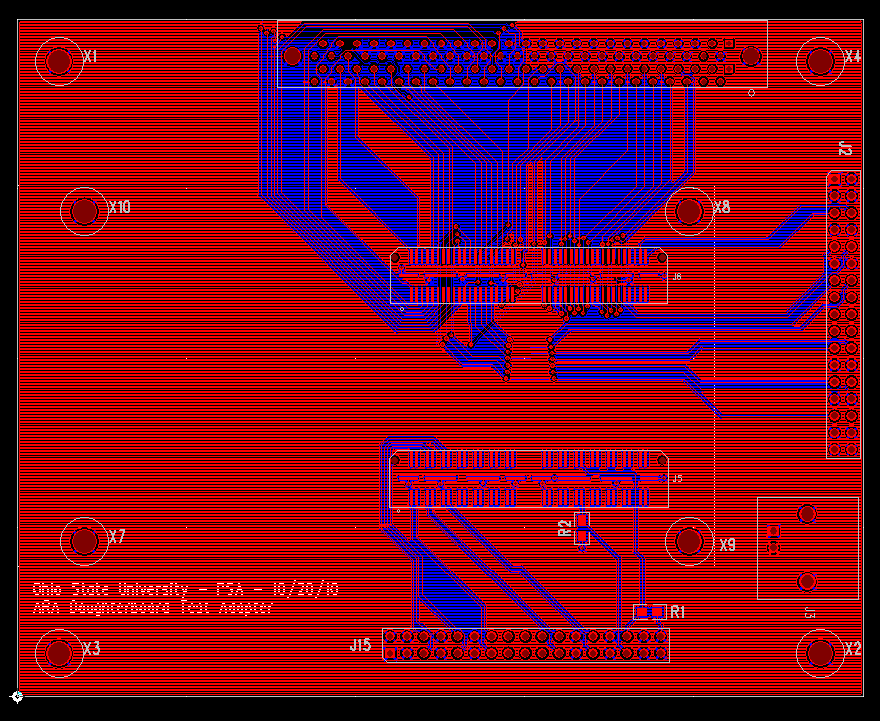

    2. DDA layout  [png]
    3. "ARA" Parts list  [xls]
  3. Comments received:
