XRM Readout Working Group

• Fabio short-report on detector support [link]
• Fabio Rinaldi thesis [link]

• SLAC Detector meeting prep (14-JUN-2016)  [pdf]

•

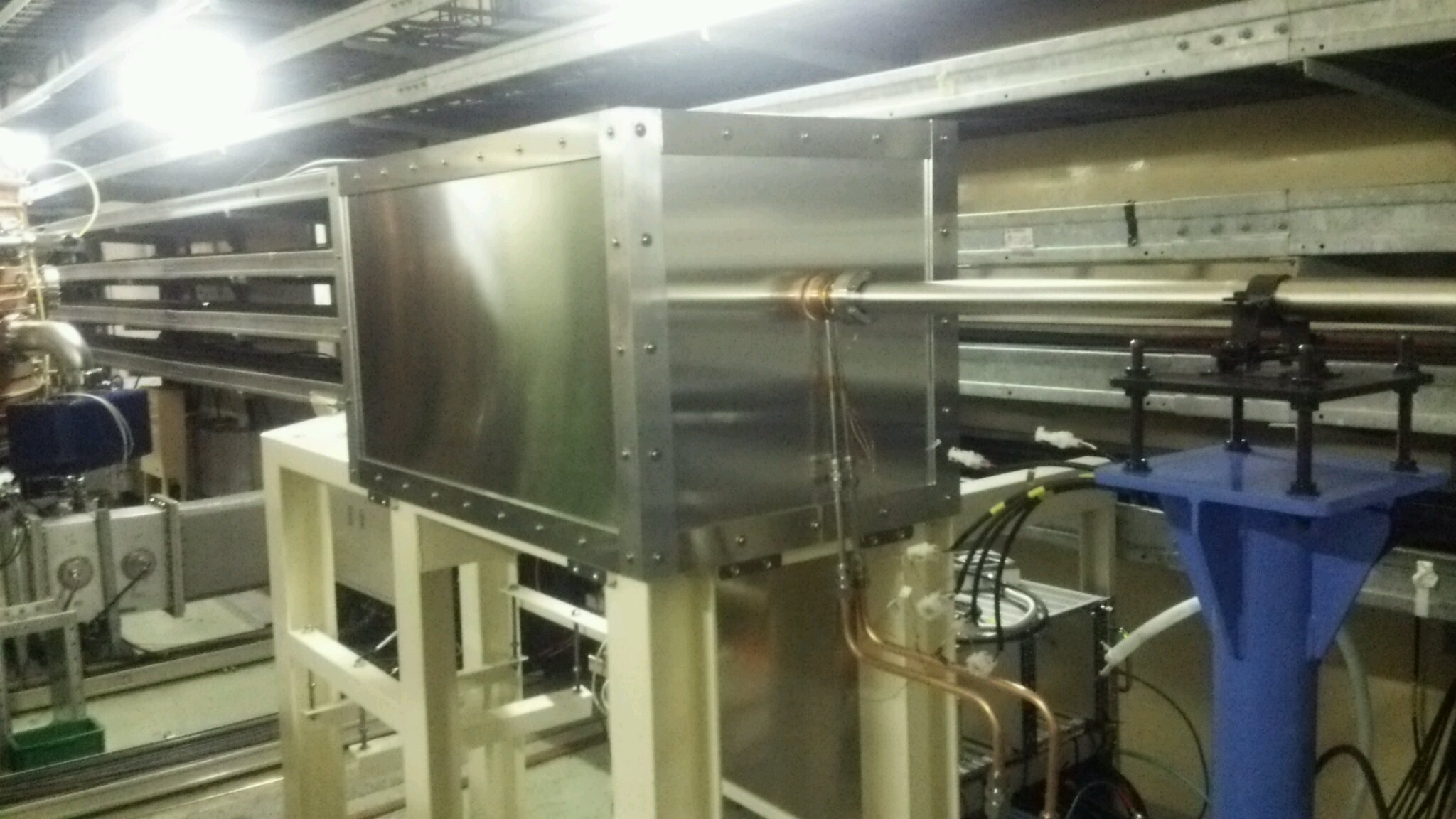

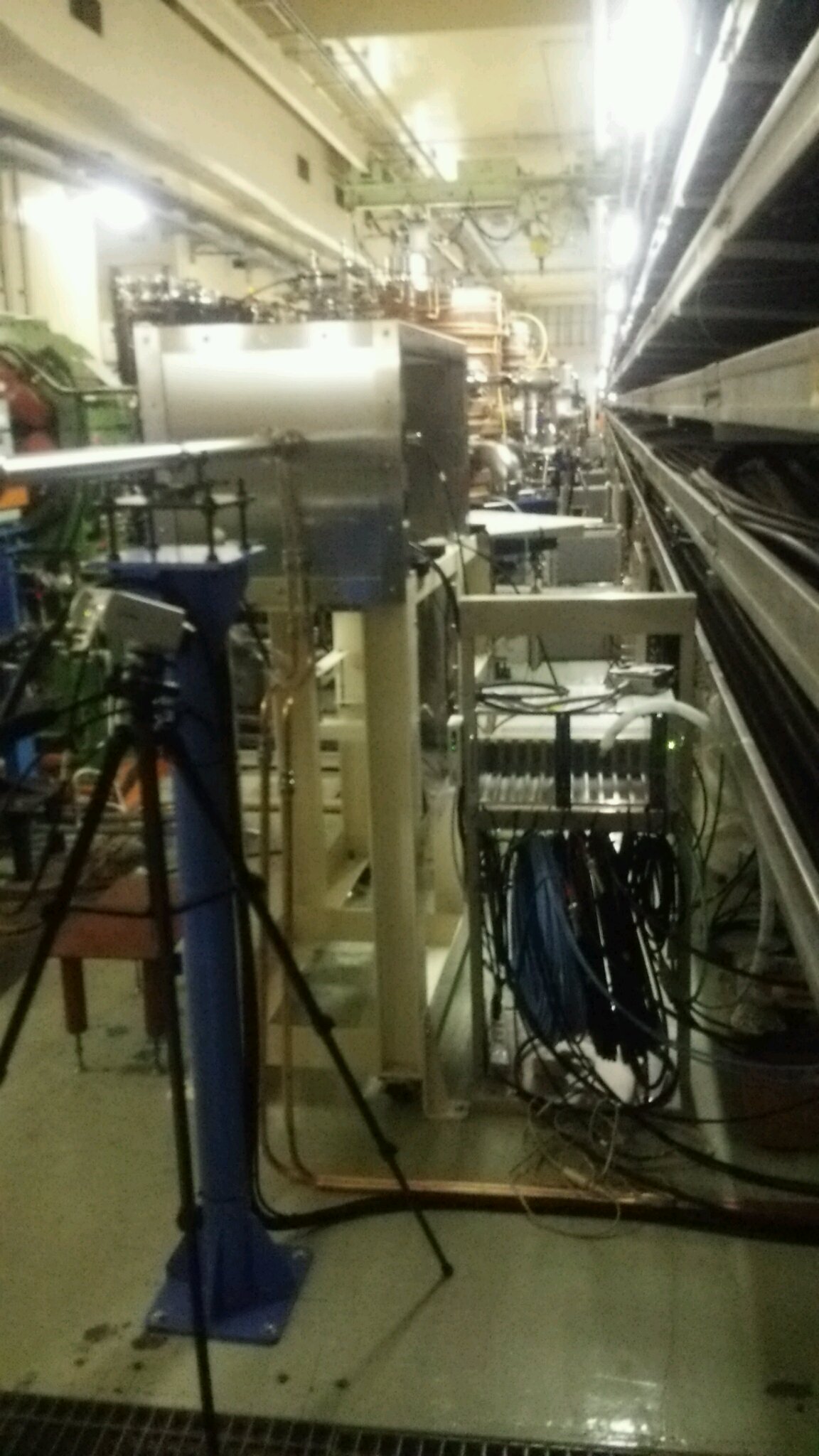

• First x-rays on LER beamline  [pptx]
• Online Operators Log (requires KEK VPN/tsubaki access) [link]
• External accelerator status  [link]

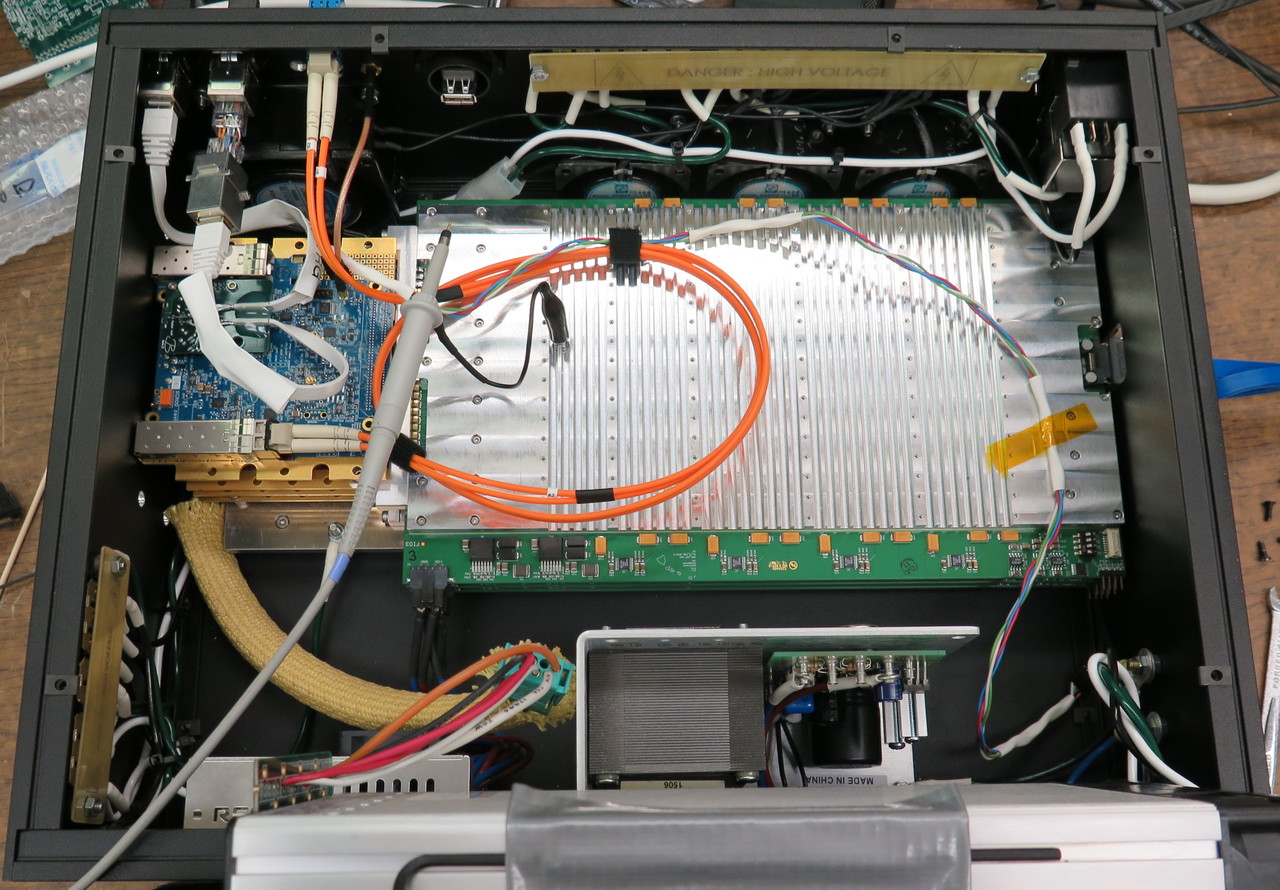

• Readout box internals  [jpg]
• Detector under test (prior to shipment)   [jpg]


1. Detector Boards

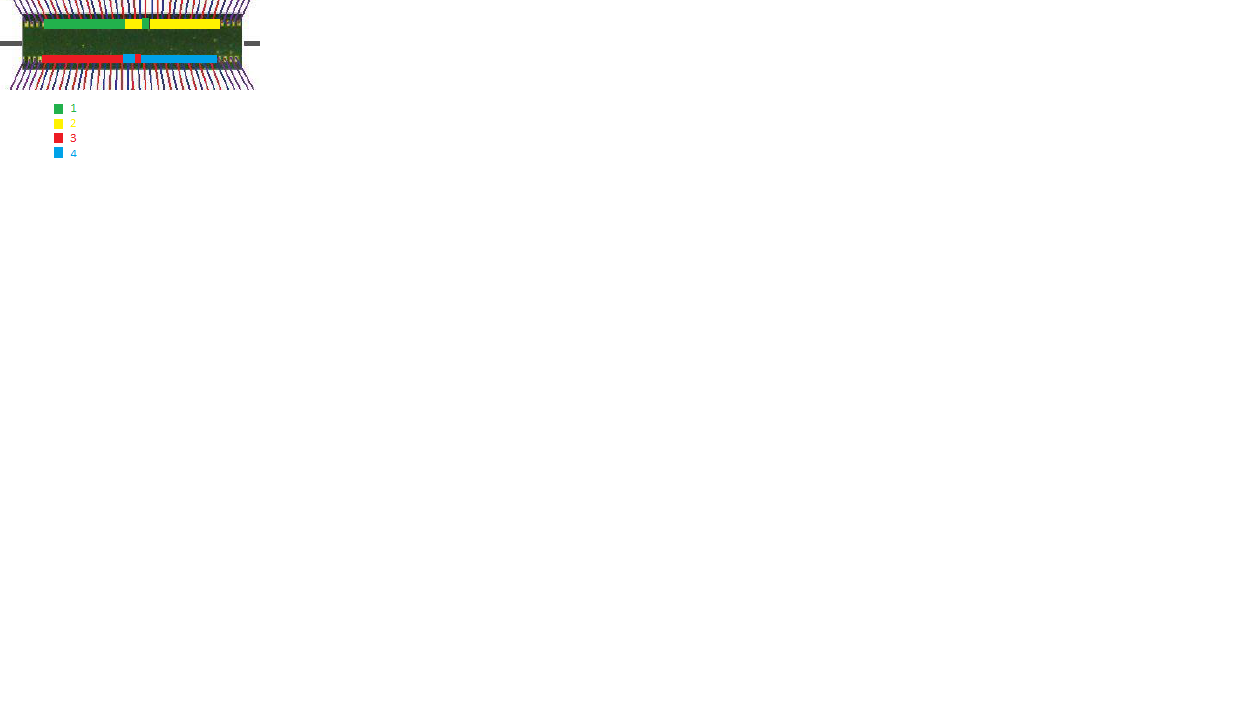

• Channel mapping (updated 23-JAN-2016)   [xls]   [png]

• Reworked, tested boards available (3x); need proper Serial Numbers added

• Working on channel mapping (Luca), definitive bonding diagram:  [jpg]

• Housings machining:  to be done (1x partial from before)

2. Amplifier boards
• 3x Assembled, shipped on Sunday (here either today or tomorrow).  Plan to install all 3, so 48 channels total

• Curtis done with shields -- ready

3. Boardstacks -- rework in progress
• Matt has done the first 1x Carrier.  As Tri-L wanted $1,100 (unreasonable) and they might not make it in time, Matt will just do so.

• He notes that another TJ-Hooker needs to be prepared
• Also, since we'll be using 3x Carriers on the JTAG programming chain, their traces will need to be cut

4. Readout Housing

• Steven is machining the boxes (approx. 75% complete);  Chris may ask Curtis help with the Front panels, which require quite a bit more machining
• Baseplate needs machining

• In principle have all parts, cable, connectors in hand for assembly/integration

5. Power boards
• Both boards assembled
• Some cabling work still needed
6. XTD boards
• 1x XTD now PLL working

• Both XTD need to have JTAG debugged


Next meeting:  Friday @ 2pm HST (1/22)

Other Items (next few days?):

1. Register other r-Pi on network
• Khanh will send MAC address

2. Try powering up/network connecting 2 SCROD in D8 Optics hut
• Next week

3. Set up EMI antenna(s)
• Bringing log-periodic (400 - 1100 MHz), should get VHF/UHF pick-up (locally?)

4. Be proactive in preparing EMI mitigation strategy
• Continue the discussion


1. Amplifiers [Vihtori w/Peter&Isar]   [reference paper]

1. Updated detector simulation [Emy]

2. Detector board design -- first version completed & fabricated (see below)

3. Carrier front-end  -- first version completed & fabricated  (see below)
2. Fermionics Detector (and preamp) Board (Vihtori/Peter)  [IDL_15_037]
• Detailed RF pulse response studies of PA/Amp chain [Dec 2015] (Peter)   [pdf]

• Detailed detector + pre-amp study (Peter)  [pdf]

• Detector bias study  [pdf]

• Detector pin-out (schematic for detector board)  [pdf]

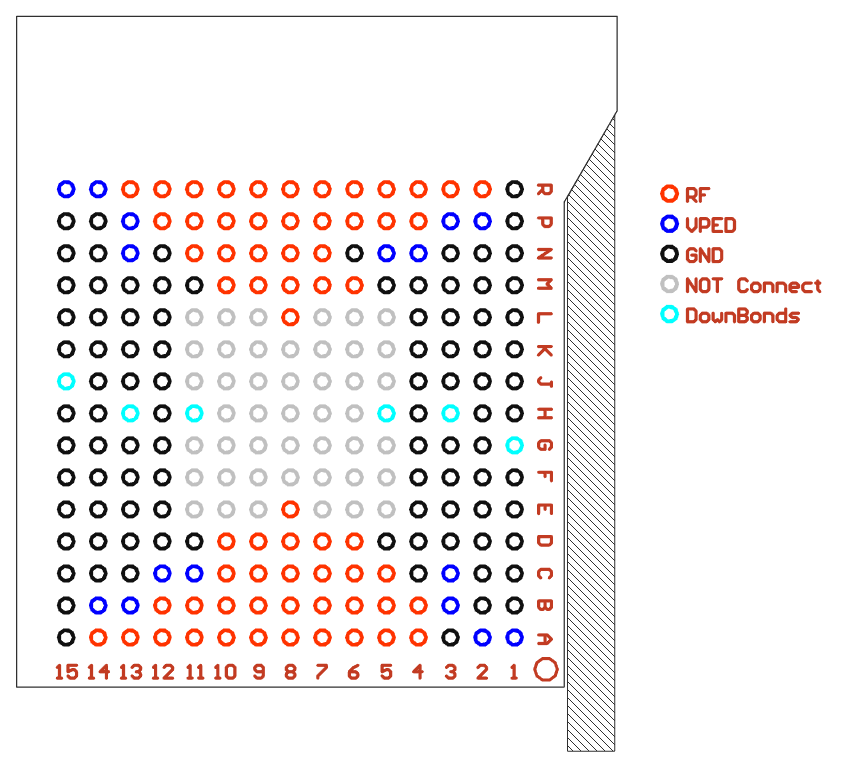

• Used bonding pins socket view   [png]

• Wire-bond package Reference   [pdf]
• ZIF socket datasheet/Reference   [pdf]

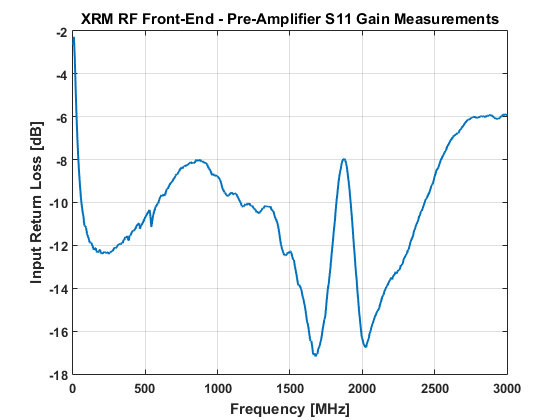

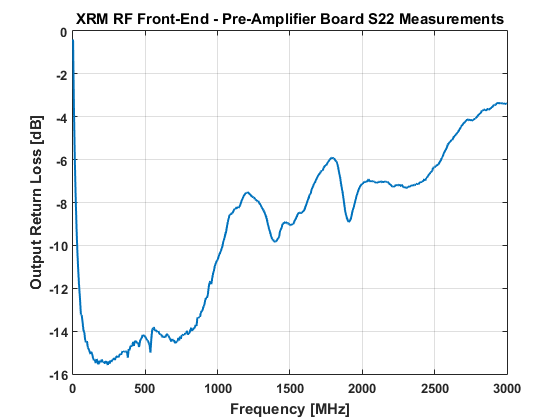

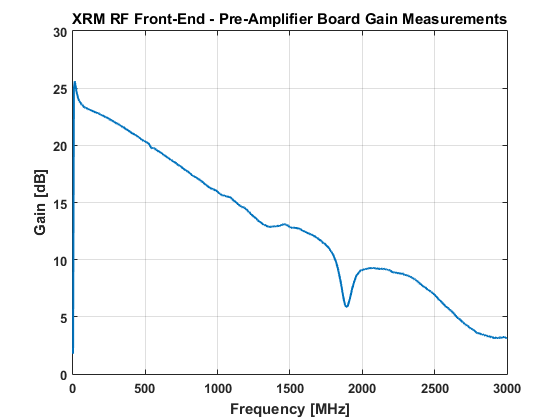

• RF performance measurements:  [gain]  [S11]   [S22]

3. Detector Power Board (Peter)  [IDL_15_040]

4. Amplifier Board (Peter)  [IDL_15_038]

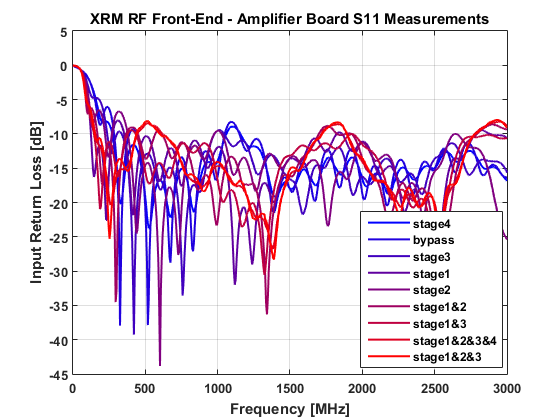

• RF performance measurements:  [gain]  [S11]   [S22]
5. IRSX Board Stacks  [Matt]

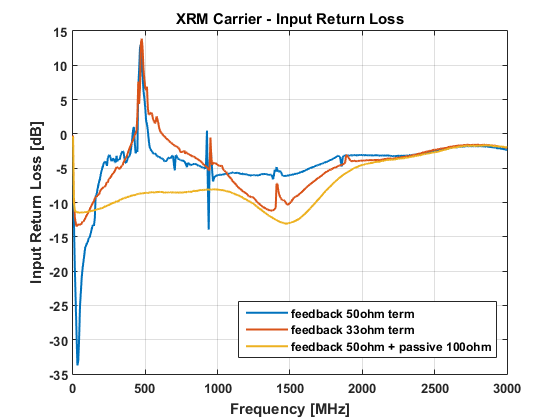

1. 4x initial Rev E, modified input coupling.  First Amp --> Carrier coupling results (needed 100 ohm to patch up)  [S11]

2. 2x SCROD (doesn't need working DRAM)

6. Carrier Firmware
• IRSX control [Gary/Luca]
• Multi-ASIC readout  [Luca]
7. SCROD Firmware

• Multi-Carrier Event Building / configuration  [Luca]
8. Instrument Overall  [Chris/Matt]

1. Detector mounting and housing
2. Readout chassis design:
•  (10-NOV-2015)  [pdf]
• (16-NOV-2015)   [pdf]

3. Cooling issues for both

9. XTD timing module  (Khanh/Matt/Luca)  [IDL_15_039]
10. Schedule
11. Future upgrades:
1. SCROD Firmware:
1. Real-time pedestal subtraction  [James/Luca]
2. PS feature extraction  [James]
3. Online histogram and monitoring  [James]

Project overview [28-AUG-2015]

Overall update (4-SEP-2015)  [pdf]
