mppc_dacs_wrapper_dac088s085 Entity Reference

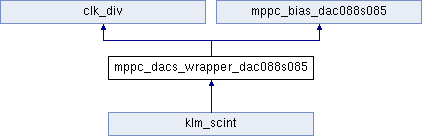

Inheritance diagram for mppc_dacs_wrapper_dac088s085:

Entities
Behavioral	architecture

Libraries
IEEE

Use Clauses
std_logic_1164
numeric_std
std_logic_unsigned
all

Ports
clk	in std_logic
dac_number	in std_logic_vector ( 3 downto 0 )
dac_addr	in std_logic_vector ( 3 downto 0 )
dac_value	in std_logic_vector ( 7 downto 0 )
write_strobe	in std_logic
busy	out std_logic
SCK_DAC	out std_logic
DIN_DAC	out std_logic
TDC_CS_DAC	out std_logic_vector ( 9 downto 0 )

Detailed Description

Definition at line 19 of file mppc_dacs_wrapper_dac088s085.vhd.

---

The documentation for this class was generated from the following file:

• peripherals/mppc_dacs_wrapper_dac088s085.vhd
