WaveAndPedStaging Entity Reference

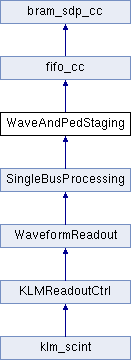

Inheritance diagram for WaveAndPedStaging:

Entities
Behavioral	architecture

Libraries
IEEE
work

Use Clauses
std_logic_1164
NUMERIC_STD
std_logic_MISC
std_logic_UNSIGNED
klm_scint_pkg	Package <klm_scint_pkg>

Generics
FIFO_DIN_SHIFT_DEPTH_g	integer := 2

Ports
clk	in std_logic := ' 0 '
reset	in std_logic := ' 0 '
prime_fifos	in std_logic := ' 0 '
summing_ena	in std_logic := ' 0 '
wave_fifo_wr_asic	in std_logic_vector ( 4 downto 0 ) := ( others = > ' 0 ' )
wave_fifo_wr_ena	in std_logic := ' 0 '
main_samp_in	in std_logic_vector ( 11 downto 0 ) := ( others = > ' 0 ' )
ped_fifo_wr_asic	in std_logic_vector ( 4 downto 0 ) := ( others = > ' 0 ' )
ped_fifo_wr_ena	in std_logic := ' 0 '
ped_fifo_din	in std_logic_vector ( 11 downto 0 ) := ( others = > ' 0 ' )
fifo_rd_asic	in std_logic_vector ( 4 downto 0 ) := ( others = > ' 0 ' )
fifo_rd_ena	in std_logic := ' 0 '
fifo_dout	out std_logic_vector ( 23 downto 0 ) := ( others = > ' 0 ' )
fifo_drdy	out std_logic := ' 0 '
fifos_empty	out std_logic := ' 0 '

Detailed Description

Overview

Temporary waveform and pedestal memory for one channel on each of 5 asics. Because only one asic is read at a time, all fifo data i/o's are tied together while the enable signals are multiplexed based on asic number. This module will be instantiated 15 times per bus (2 buses)

In pedestal calculating mode, writing waveform samples to the wave fifo kicks off a state machine which first reads the wave and ped fifos, then adds the new sample to the sum of all prior iterations, and it stores this sum as a 24 bit vector shared by the wave and ped fifos. This scheme allows 2^12 averages of each pedestal value, but in practice 2^6 or 2^7 averages is sufficient.

Definition at line 24 of file WaveAndPedStaging.vhd.

---

The documentation for this class was generated from the following file:

• klm_scint/source/WaveAndPedStaging.vhd
