TX_LL_DATAPATH Entity Reference

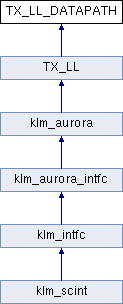

Inheritance diagram for TX_LL_DATAPATH:
TX_LL klm_aurora klm_aurora_intfc klm_intfc klm_scint

Entities

RTL  architecture


Libraries

IEEE

Use Clauses

STD_LOGIC_1164

Ports

TX_D   in std_logic_vector ( 0 to 15 )
TX_REM   in std_logic
TX_SRC_RDY_N   in std_logic
TX_SOF_N   in std_logic
TX_EOF_N   in std_logic
TX_PE_DATA_V   out std_logic
GEN_PAD   out std_logic
TX_PE_DATA   out std_logic_vector ( 0 to 15 )
HALT_C   in std_logic
TX_DST_RDY_N   in std_logic
CHANNEL_UP   in std_logic
USER_CLK   in std_logic

Detailed Description

Definition at line 62 of file tx_ll_datapath.vhd.
