RX_LL_PDU_DATAPATH Entity Reference

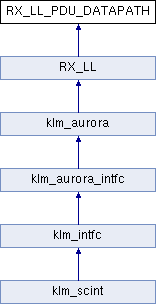

Inheritance diagram for RX_LL_PDU_DATAPATH:

Entities
RTL	architecture

Libraries
IEEE

Use Clauses
STD_LOGIC_1164
STD_LOGIC_ARITH
STD_LOGIC_UNSIGNED
AURORA_PKG	Package <AURORA_PKG>

Ports
PDU_DATA	in std_logic_vector ( 0 to 15 )
PDU_DATA_V	in std_logic
PDU_PAD	in std_logic
PDU_SCP	in std_logic
PDU_ECP	in std_logic
RX_D	out std_logic_vector ( 0 to 15 )
RX_REM	out std_logic
RX_SRC_RDY_N	out std_logic
RX_SOF_N	out std_logic
RX_EOF_N	out std_logic
FRAME_ERR	out std_logic
USER_CLK	in std_logic
RESET	in std_logic

Detailed Description

Definition at line 67 of file rx_ll_pdu_datapath.vhd.

---

The documentation for this class was generated from the following file:

• klm_aurora/source/rx_ll_pdu_datapath.vhd
