RX_LL Entity Reference

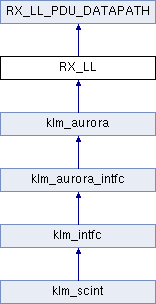

Inheritance diagram for RX_LL:

Entities
MAPPED	architecture

Libraries
IEEE

Use Clauses
STD_LOGIC_1164

Ports
RX_D	out std_logic_vector ( 0 to 15 )
RX_REM	out std_logic
RX_SRC_RDY_N	out std_logic
RX_SOF_N	out std_logic
RX_EOF_N	out std_logic
START_RX	in std_logic
RX_PAD	in std_logic
RX_PE_DATA	in std_logic_vector ( 0 to 15 )
RX_PE_DATA_V	in std_logic
RX_SCP	in std_logic
RX_ECP	in std_logic
FRAME_ERR	out std_logic
USER_CLK	in std_logic

Detailed Description

Definition at line 65 of file rx_ll.vhd.

---

The documentation for this class was generated from the following file:

• klm_aurora/source/rx_ll.vhd
