b2tt_encode Entity Reference

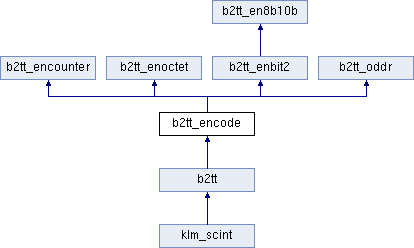

Inheritance diagram for b2tt_encode:

Entities
implementation	architecture

Libraries
ieee

Use Clauses
std_logic_1164
std_logic_unsigned
numeric_std

Generics
FLIPACK	std_logic := ' 0 '

Ports
clock	in std_logic
invclock	in std_logic
frame	in std_logic
errreset	in std_logic
bsyin	in std_logic
payload	in std_logic_vector ( 111 downto 0 )
fillsig	out std_logic
ackp	out std_logic
ackn	out std_logic
cntbit2	out std_logic_vector ( 2 downto 0 )
cntoctet	out std_logic_vector ( 3 downto 0 )
isk	out std_logic
octet	out std_logic_vector ( 7 downto 0 )
bsyup	out std_logic
bsydn	out std_logic
bit2	out std_logic_vector ( 1 downto 0 )

Detailed Description

Definition at line 308 of file b2tt_encode.vhd.

---

The documentation for this class was generated from the following file:

• b2tt/b2tt/b2tt_encode.vhd
