NTU LNA Acceptance Testing Results - Exhibits Anomalous Peaks At 750 MHz

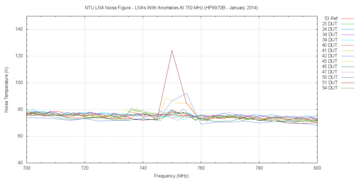

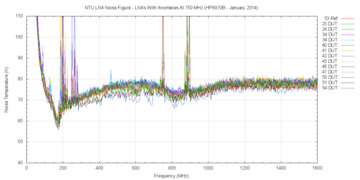

This web-page displays the acceptance testing results for the 13 NTU LNAs which exhibited anomalous peaks in the noise temperature at around 750 MHz.

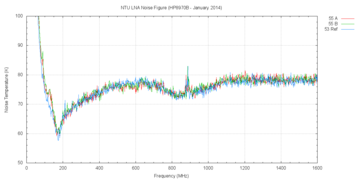

In these plots made from Noise Meter data, the reference amplifier (#53) is always the RED lines

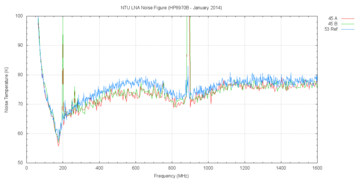

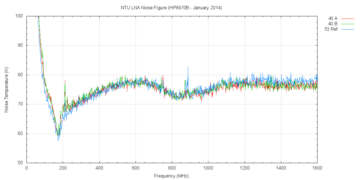

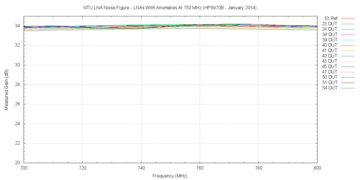

Gain (zoom-y)	Noise Temperature (zoom-y)	Gain (zoom-y) (zoom-x)	Noise Temperature (zoom-x)

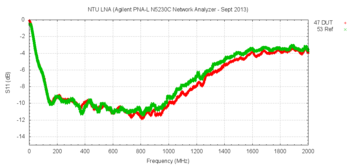

In all NA plots, the reference amplifier (#53) is always the GREEN point
In the Noise Figure plots, the reference amplifier (#53) is always the BLUE point

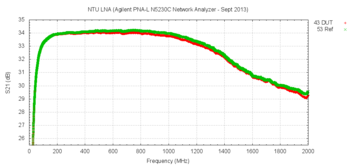

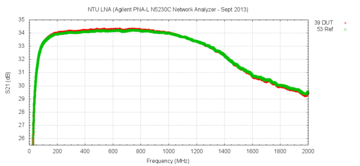

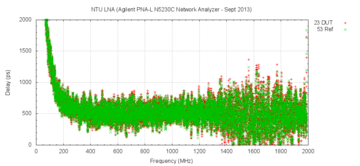

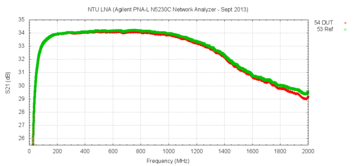

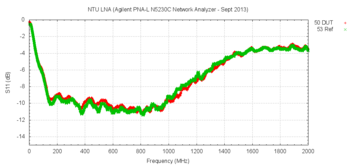

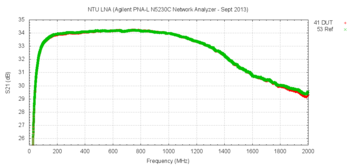

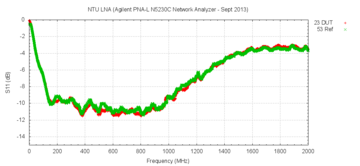

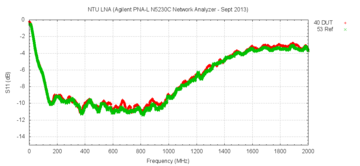

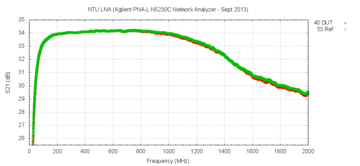

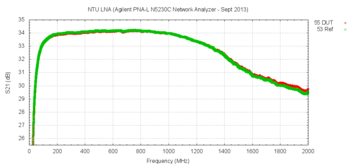

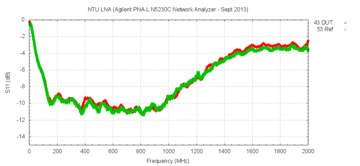

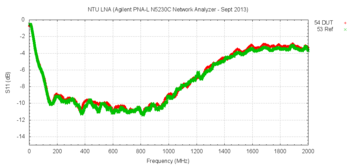

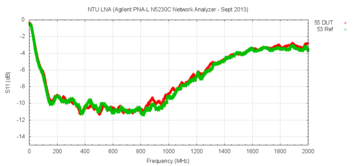

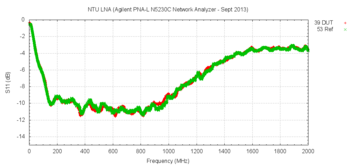

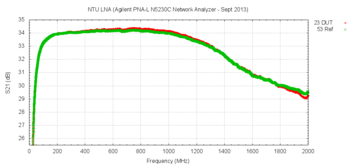

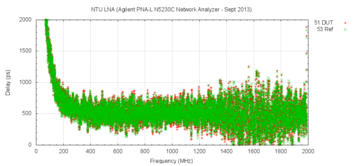

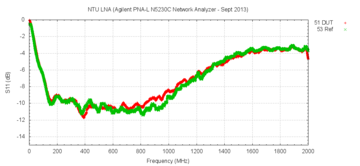

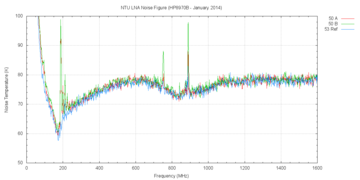

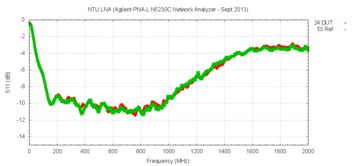

Serial Number	S11	S21	Delay	Noise Temperature (zoom-y)
#23

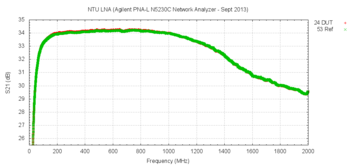

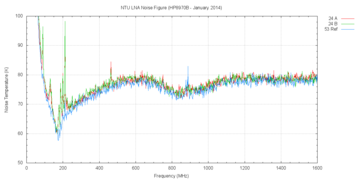

#24
#34

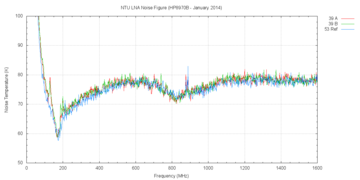

#39
#40
#41

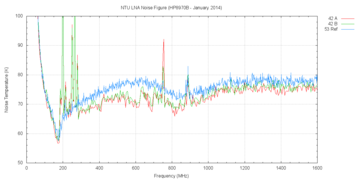

#42

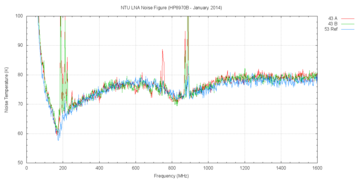

#43
#45

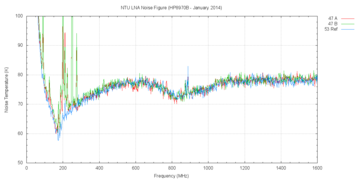

#47
#50

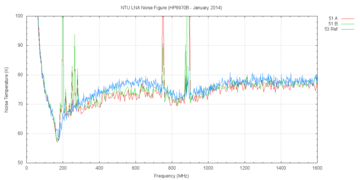

#51
#54
#55
