We measured the S parameters for 31 of the 34 the optical zonus after the company changed the connectors from SC to FC using the Agilent 5230C Network Analyzer. The TX unit for pairs 05 and 31 had soldered on the SMA connectors, so they were not measured yet. And, pairs 19 does not seem to work anymore.

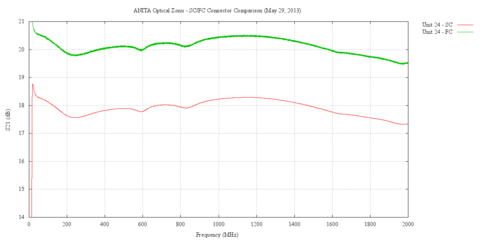

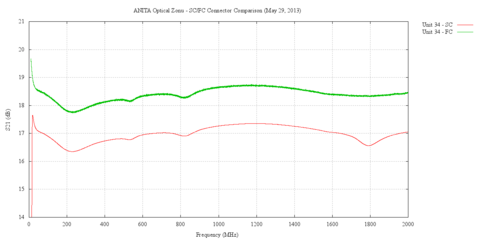

All Units - FC connectors	All Units - SC connectors

---

Zonu Pair Unit	S21 Comparison Plot
Unit 01
Unit 02
Unit 03
Unit 04
Unit 05	Not measured due to solder blob on TX Zonu
Unit 06
Unit 07
Unit 08
Unit 09
Unit 10
Unit 11
Unit 12
Unit 13
Unit 14
Unit 15
Unit 16
Unit 17
Unit 18
Unit 19 But Subsequently Broken
Unit 20
Unit 21
Unit 22
Unit 23
Unit 24
Unit 25
Unit 26
Unit 27
Unit 28
Unit 29
Unit 30
Unit 31	Not measured due to solder blob on TX Zonu
Unit 32
Unit 33
Unit 34
