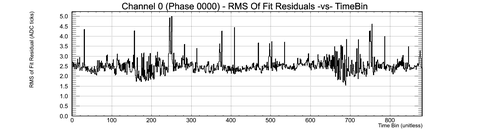

3.125 MHz sine wave data was fit with a sine function where the fit function allowed the frequency, phase, baseline, and amplitude to vary. For each fit, the residuals were computed for each timebin. Doing this for 2000 events, the average and RMS residuals were computed for each timebin and for 10 different bins of phase.
| Quantity Plotted | Plot |
|---|---|

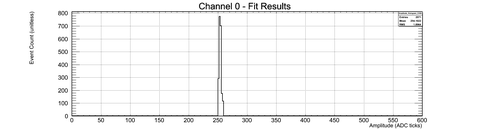

| Amplitude |
|

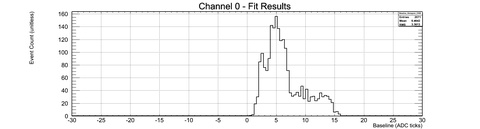

| Baseline |
|

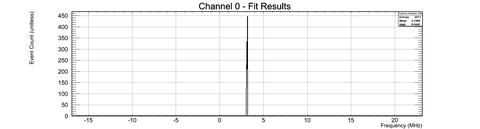

| Frequency |
|

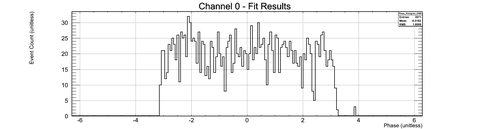

| Phase |
|

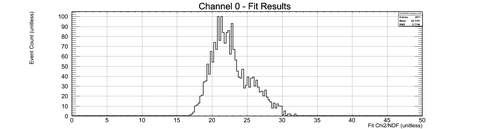

| FitChi2 / DOF |
|

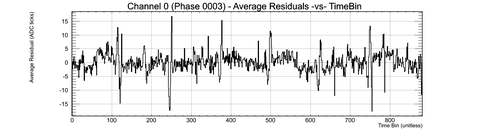

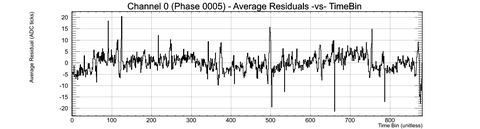

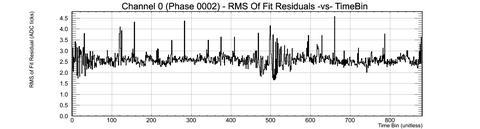

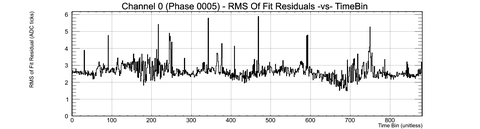

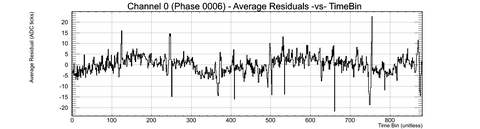

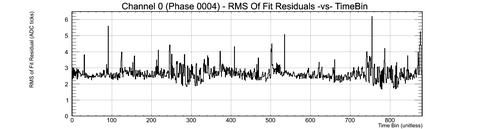

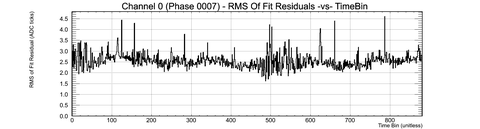

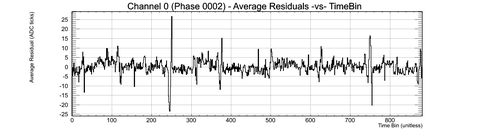

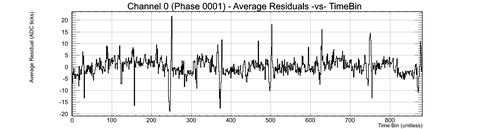

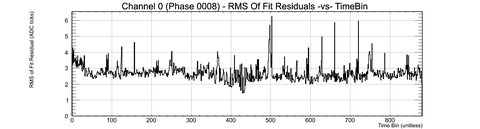

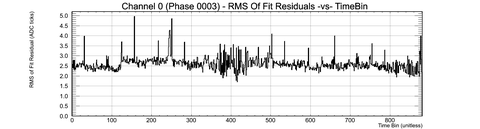

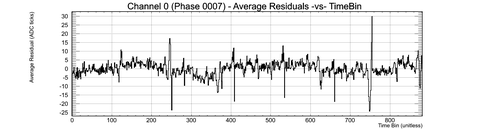

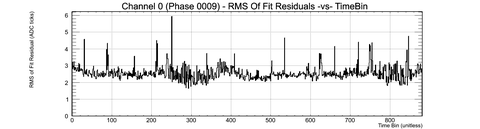

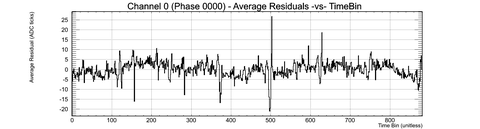

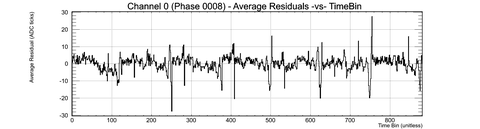

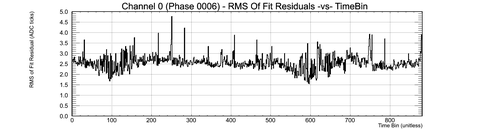

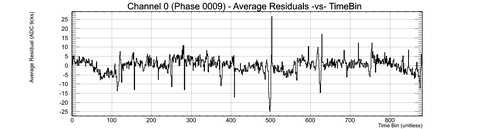

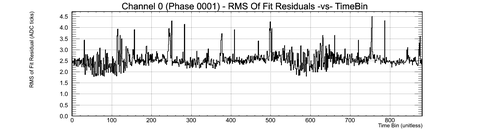

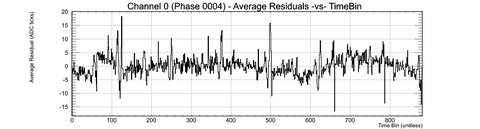

| TimeBin | Average Residual | RMS Residual |
|---|---|---|
| TimeBin 0000 |
|
|
| TimeBin 0001 |
|
|
| TimeBin 0002 |
|
|
| TimeBin 0003 |
|
|
| TimeBin 0004 |
|
|
| TimeBin 0005 |
|
|
| TimeBin 0006 |
|
|
| TimeBin 0007 |
|
|
| TimeBin 0008 |
|
|
| TimeBin 0009 |
|
|
Brendan Fox
